Pond Liner Selection: EPDM vs PVC vs Concrete - Complete Guide for Irish Water Features

Choosing the right waterproofing method for your pond's long-term success and durability

By Pete & Seamus 1 December 2024

Pond Liner Selection: EPDM vs PVC vs Concrete - Complete Guide for Irish Water Features

Choosing the right waterproofing method for your pond’s long-term success and durability

Introduction

Here’s the truth about pond liners - choose wrong, and you’ll be dealing with leaks, repairs, and expensive headaches for years. Choose right, and your pond will hold water reliably for decades while you focus on enjoying it.

Most people get overwhelmed by the technical specs and sales pitches. But honestly, the choice often comes down to understanding your specific situation: the type of pond you’re building, your budget, your DIY skills, and how long you want the installation to last.

We’ve installed every type of pond lining system across County Louth over the past two decades. We’ve seen EPDM liners that are still perfect after twenty years, PVC systems that failed after five, and concrete ponds that have lasted since the 1950s. We’ve also seen expensive concrete installations crack within months due to poor planning.

The secret isn’t that one material is universally better than others. It’s about matching the right lining system to your specific project requirements and site conditions.

Whether you’re planning a simple garden pond or a complex koi installation, here’s everything you need to know to make the right choice for your Irish water feature.

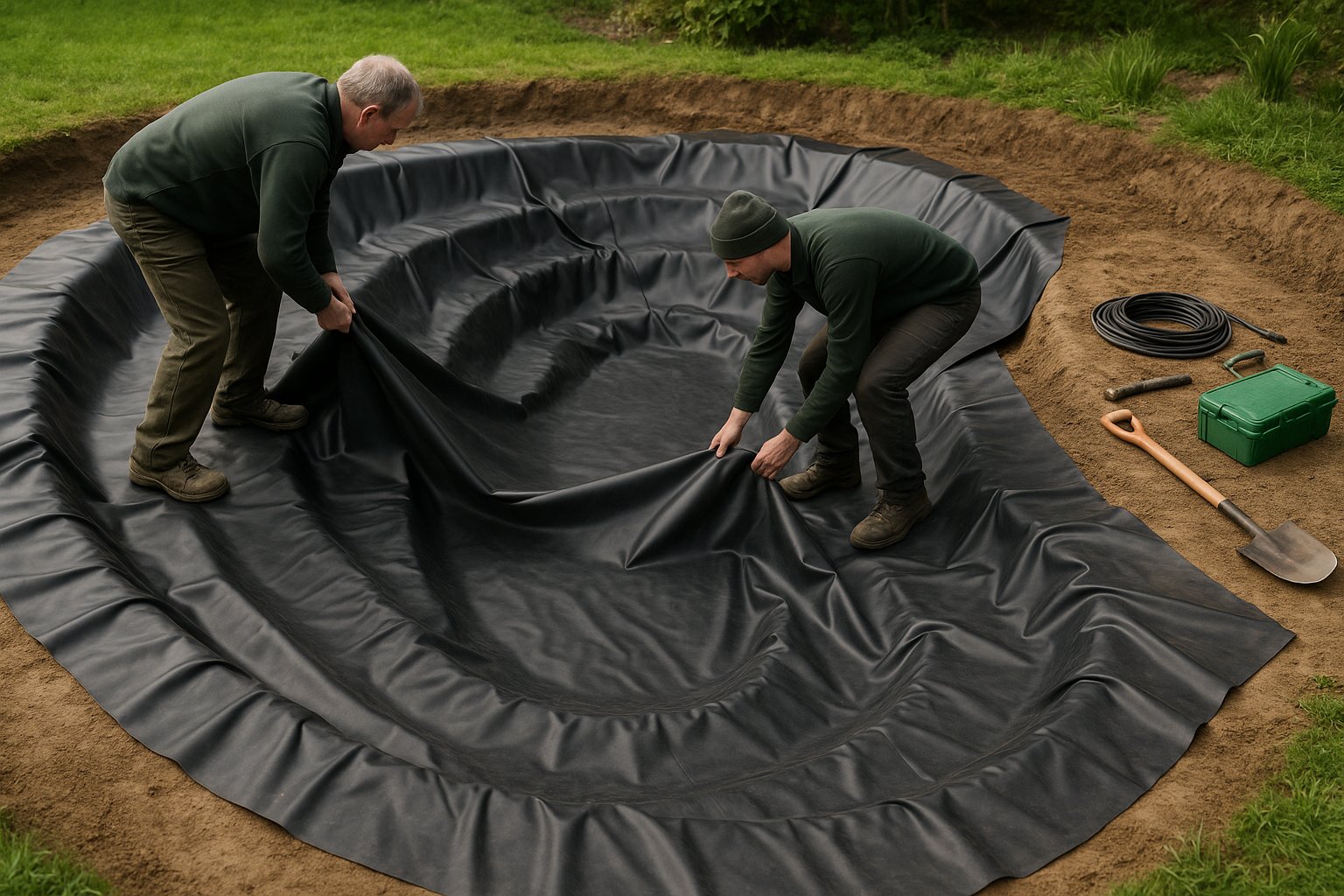

Professional pond liner installation showing EPDM rubber liner installation process in County Louth

Understanding Pond Lining Fundamentals

Why Pond Lining Matters: Your pond’s lining system is its foundation. Everything else - filtration, landscaping, fish health, water quality - depends on reliable waterproofing. Get this wrong, and nothing else matters because you’ll be constantly fighting water loss.

What We’re Really Comparing: When we talk about pond liners, we’re comparing three fundamentally different approaches:

Irish Climate Considerations: Our weather puts specific demands on pond lining systems. Freeze-thaw cycles stress materials differently. High humidity affects some systems more than others. Heavy rainfall tests overflow and drainage systems. UV exposure from summer sun degrades some materials faster.

Longevity Expectations: Different lining systems have vastly different lifespans:

EPDM Rubber Liners: The Gold Standard

What EPDM Actually Is: EPDM (Ethylene Propylene Diene Monomer) is synthetic rubber specifically formulated for long-term water containment. Think of it as the material used for flat commercial roofs, but specifically designed for underwater applications.

Why EPDM Excels in Irish Conditions: Irish weather is actually perfect for EPDM. Our moderate temperatures prevent the extreme expansion and contraction that stresses liners in harsher climates. High humidity keeps the material flexible. Even our occasional hot summers don’t approach the temperatures that degrade EPDM.

EPDM Advantages:

EPDM Limitations:

EPDM Thickness Options: 45-mil (1.14mm): Minimum for residential ponds, suitable for simple shapes 60-mil (1.52mm): Standard thickness for most applications, excellent durability 90-mil (2.29mm): Heavy-duty option for commercial or high-traffic areas

Installation Considerations: EPDM installation requires proper underlayment to prevent punctures from sharp objects. Geotextile fabric or specialized pond underlayment is essential. The material needs time to warm and become flexible in cool Irish weather.

PVC Liners: Budget-Friendly Performance

PVC Liner Composition: PVC (Polyvinyl Chloride) pond liners are reinforced plastic materials designed for water containment. Quality varies dramatically between manufacturers, making brand selection crucial.

PVC Performance in Irish Climate: PVC performs adequately in Irish conditions but shows more sensitivity to temperature extremes than EPDM. Cold weather makes PVC brittle, while hot summer days can make it uncomfortably warm to handle.

PVC Advantages:

PVC Limitations:

PVC Quality Grades: Economy Grade: 20-mil thickness, 5-10 year lifespan, suitable for temporary installations Standard Grade: 32-mil thickness, 10-15 year lifespan, good for most garden ponds Premium Grade: 45-mil reinforced, 15-20 year lifespan, approaching EPDM performance

Reinforced vs Non-Reinforced: Reinforced PVC includes fabric mesh for strength and puncture resistance. Non-reinforced is cheaper but significantly less durable. For Irish installations, reinforced PVC is strongly recommended.

Concrete Construction: The Permanent Solution

Modern Concrete Pond Construction: Today’s concrete pond construction is far more sophisticated than simple concrete shells. Modern techniques include reinforcement, waterproofing membranes, and specialized coatings that create extremely durable installations.

Why Choose Concrete: Concrete makes sense for large installations, complex shapes, integrated features (seating, planters, steps), and situations where permanence is valued over flexibility.

Concrete Advantages:

Concrete Limitations:

Concrete Construction Methods:

Shotcrete Application: Pneumatically applied concrete creates seamless shells with excellent strength. Professional installation required but results in superior durability.

Block and Render Construction: Concrete blocks create structure, followed by waterproof rendering. More accessible to skilled DIYers but requires proper technique.

Poured Concrete: Traditional method suitable for geometric shapes. Requires proper formwork and reinforcement for reliability.

Waterproofing Systems: Modern concrete ponds require waterproofing beyond the concrete itself:

Comparison of different pond liner materials including EPDM, PVC, and concrete options for Irish water features

Comparing Performance in Irish Conditions

Freeze-Thaw Resistance: Irish winter conditions test all lining materials through freeze-thaw cycles.

EPDM Performance: Excellent flexibility accommodates ice expansion without damage PVC Performance: Adequate with quality products, but cheaper grades may crack Concrete Performance: Requires proper reinforcement and water depth to prevent damage

UV Exposure Effects: Irish summer sun, while not extreme, gradually degrades some materials.

EPDM Durability: 20+ year UV resistance standard PVC Longevity: 10-15 years depending on grade and additives Concrete Protection: UV doesn’t affect concrete directly, but coatings may require renewal

Ground Movement Accommodation: County Louth’s clay soils expand and contract with moisture changes.

EPDM Flexibility: Excellent accommodation of ground movement PVC Adaptation: Good flexibility with reinforced products Concrete Response: Rigid system requires excellent foundations to prevent cracking

Chemical Resistance: Irish gardens use fertilizers, herbicides, and treatments that may contact pond water.

EPDM Safety: Excellent chemical resistance, safe for fish PVC Stability: Good resistance with quality products Concrete Durability: Excellent chemical resistance, may affect pH initially

Cost Analysis: Initial Investment vs Long-Term Value

Small Garden Pond (2,000-5,000 gallons):

EPDM Installation:

PVC Installation:

Concrete Installation:

Medium Koi Pond (5,000-15,000 gallons):

EPDM Installation:

PVC Installation:

Concrete Installation:

Large Water Feature (15,000+ gallons):

EPDM Installation:

Concrete Installation:

Installation Requirements and Complexity

EPDM Installation Process:

Site Preparation:

Liner Installation:

Critical Success Factors:

PVC Installation Process: Similar to EPDM but requires more care in cold weather when material becomes brittle. Quality adhesives and sealants are crucial for seam integrity.

Concrete Installation Requirements:

Professional Expertise:

Critical Timeline:

Maintenance and Repair Considerations

EPDM Maintenance: Routine Care: Annual inspection for damage, debris removal from liner surface Repair Process: Clean area, apply EPDM primer, patch with adhesive-backed repair material Longevity: Well-maintained EPDM can last 25-30 years in Irish conditions

PVC Maintenance: Routine Care: More frequent inspection due to shorter lifespan Repair Process: Similar to EPDM but with PVC-specific materials Replacement: Often more cost-effective to replace than extensively repair after 10-15 years

Concrete Maintenance: Routine Care: Annual inspection for cracks, coating maintenance every 5-10 years Repair Process: Crack injection, surface treatments, potential resealing Longevity: Properly built concrete ponds can last indefinitely with maintenance

Choosing the Right Liner for Your Project

EPDM is Best When:

PVC is Suitable When:

Concrete is Ideal When:

Decision Framework Questions:

  1. What’s your total budget including installation?
  2. How long do you plan to live in your current home?
  3. Do you want DIY installation or professional construction?
  4. How important is long-term durability vs initial cost?
  5. Are you planning fish or just decorative water?

Professional vs DIY Installation

DIY-Suitable Projects:

Professional Installation Required:

Hybrid Approaches: Many successful projects combine DIY excavation and preparation with professional installation of critical components.

Safety Considerations:

Common Installation Mistakes

EPDM Installation Errors:

PVC Installation Problems:

Concrete Construction Mistakes:

Universal Mistakes:

Quality Standards and Specifications

EPDM Quality Indicators:

PVC Quality Markers:

Concrete Quality Requirements:

Environmental Considerations

Material Sustainability: EPDM: Long lifespan reduces replacement frequency, recyclable PVC: Shorter lifespan increases replacement needs, recycling limited Concrete: Very long lifespan, high embodied energy, permanent installation

Fish and Wildlife Safety: All modern pond liners are designed to be safe for fish and wildlife, but quality varies. Look for specific certifications and avoid economy products that may leach chemicals.

End-of-Life Considerations: Plan for eventual liner replacement or pond decommissioning. EPDM and quality PVC can often be recycled. Concrete structures are essentially permanent.

Future Technology and Innovations

Advanced Liner Materials: New synthetic rubbers and reinforced materials offer improved performance and longevity. Expect continued improvements in UV resistance and flexibility.

Installation Technology: Improved adhesives, sealants, and installation tools make DIY installation more accessible while improving professional installation quality.

Monitoring Integration: Smart sensors can monitor liner integrity and water levels, providing early warning of potential problems.

Conclusion: Making the Right Choice for Your Pond

The best pond liner is the one that matches your specific needs, budget, and long-term plans. There’s no universally correct choice, but there are definitely wrong choices for specific situations.

For most Irish garden ponds, quality EPDM provides the best balance of durability, performance, and value. PVC offers budget-friendly options for simpler applications. Concrete delivers unmatched permanence for major installations.

Remember that your liner choice affects everything else about your pond - maintenance requirements, longevity, and ultimate satisfaction with your water feature.

Ready to Choose Your Pond Liner? Understanding your site conditions and installation requirements is essential for selecting the right lining system. Our site analysis guide provides crucial information for planning any pond construction project.

Considering different pond types and their specific requirements? Our koi pond design guide details the specialized liner considerations for supporting fish populations in Irish conditions.

After all, the best pond liner is one that holds water reliably for decades while you focus on enjoying your water feature instead of worrying about leaks.

For professional pond liner selection and installation in County Louth, consult with experienced contractors who understand both material properties and Irish site conditions. Proper installation ensures decades of reliable performance regardless of liner type chosen.
